How to Connect Two Monitors to My Laptop

We all know that multiple monitors can extremely improve our productivity and bring a great experience, especially when you’re using a laptop. But how to connect external monitors to a laptop? You’ve come to the right place. This article introduces an easy and clear guideline to connect two external monitors to your laptop.

1. Things to check before the start
2. How to set up to connect two monitors
3. Bonus Tip: What if you can’t see the plugged-in monitors

Trio Max Mobile Pixels Tri-Screen Laptop Monitor

• Easiest Solution to Multi Display Setup
• Plug and Play
• One Cable Setup

Check on Amazon

Things to check before the start

Generally speaking, most Windows laptops now support dual monitors, at least. But you need to make sure your laptop is capable to add two external monitors. And that depends on your Windows operating system, and the capability of your graphics cards and drivers.

Windows XP/7/8/10 all support multiple monitors, so you just need to check the graphics card and ports on your laptop.

1. Check the graphics card

First of all, you may need to make sure your graphics card supports multiple monitors. Normally, every graphics card provides at least two outputs, but you will need to check the graphics card properties on the manufacturer’s website, find your graphics card, and check the specifications to see if it supports adding two external monitors.

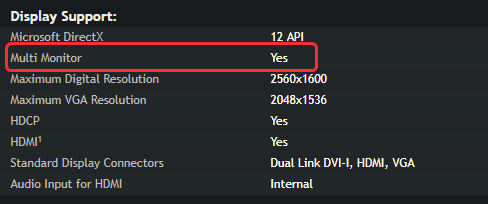

For example, if you are using the NVIDIA GeForce graphics card, you can check it out on the official website, and click your graphics card, and check the specification, then you will see if it supports multiple monitors.

If it does not support adding multiple monitors, you may need to buy and install a correct graphics card (e.g GeForce RTX 30 Series) before you keep processing.

2. Check available ports on your laptop

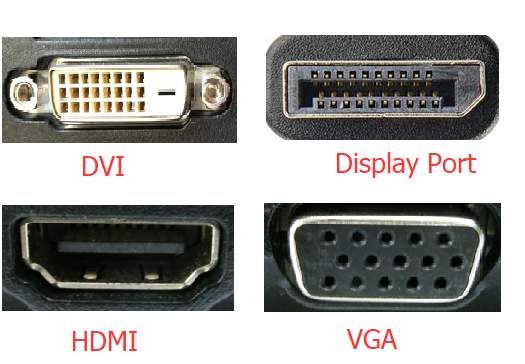

Then you may need to check the ports on your laptop. Generally, a computer or laptop should include any of these four ports:

Display Port can provide an interface with optional audio high-definition content protection.
Digital Video Interface (DVI) is usually color-coded with white plastic and labels.
Video Graphics Array (VGA) is normally color-coded with blue plastic and labels.
High-Definition Multimedia Interface (HDMI) can connect all kinds of video devices and provide sounds through the cable.

You can check the ports on the back or on the sides of your laptop. In addition to the ports on your laptop, the monitors should have the corresponding ports as well. That will save your time and money to connect them. Otherwise, you will need to buy an extra adapter, such as a DVI to HDMI adapter to have them match.

If you don’t have the match ports or if there are not enough ports on laptops

If the ports on your laptop are not the same as the connectors in your monitor cables, or there are not enough ports, don’t give up. There is a workaround! You can try one of the methods below to continue:

• Use a pluggable 4K DisplayPort and HDMI Dual Monitor adapter to connect monitors and your laptop. It’s easily adapted USB 3.0 systems as well as equipped with dual DisplayPort and HDMI ports for easy connection to two 4K monitors. Plug this adapter and you can easily connect two monitors to your laptop.
• Use a switch splitter, such as a Display splitter to have two HDMI ports. This works if you have only one HDMI port on your laptop but you need two HDMI ports.
• Use a docking station, and it works in various circumstances.

How to set up to connect two monitors

Since everything is ready, you can start connecting the two monitors to your laptop.

Note: Connect your monitors while your laptop is turned on. In most cases, Windows will detect when a new monitor is plugged in.

For example, I have VGA and HDMI ports on my laptop, and my external monitors have cables for VGA and HDMI ports as well:

1. Plug the cable of the first external monitor to the correct video port on your laptop. So I plug the VGA cable of the first external monitor into the VGA port on my laptop.
2. Plug the cable of the second external monitor to the other correct port on your laptop. So I plug the HDMI cable of the second external monitor into the HDMI port on my laptop.
3. On your laptop, right-click an empty area of your desktop and select Display settings.

4. You will see three displays labeled with 1, 2 and 3 in display mode. Generally speaking, the display 1 is the monitor of your laptop, and the display 2 and 3 are the external monitors. (What if you can’t see the plugged-in monitors?)

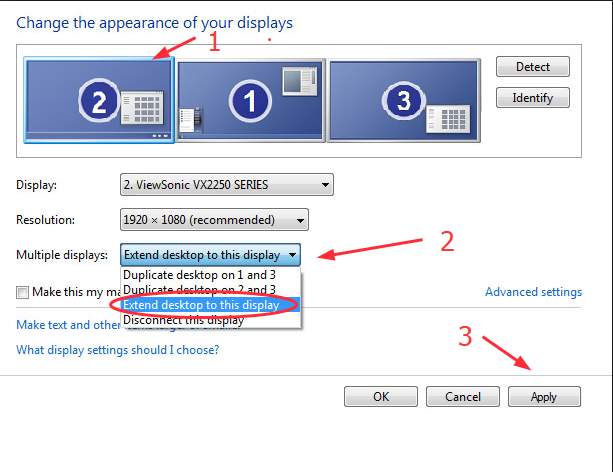

5. Click the display 2, and select Extend desktop to this display in Multiple displays, and click Apply.

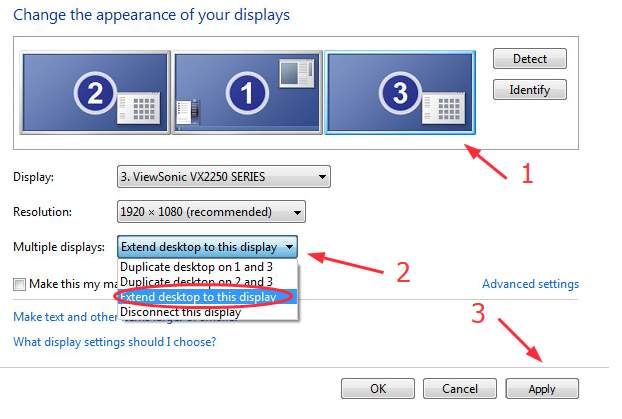

6. Click the display 3, and select Extend desktop to this display in Multiple displays, and click Apply.

7. Click OK to finish the settings, and you can now use the three monitors on your laptop.
   Tips: You can click and drag each display (1, 2 or 3) to rearrange the display. You can also change the size of items, display resolution, and orientation according to your preferences.

Bonus Tip: What if you can’t see the plugged-in monitors?

Sometimes the external monitors cannot be correctly detected by your laptop. This can be caused by improper connection, defective monitor or cables. Ensure all the cables connect correctly, and do some tests with an alternative monitor and another cable.

If it still does not work, it seems like your graphics card driver cannot properly support multiple monitors display. A driver update is necessary.

There are two ways to update drivers: manually and automatically.

Manually – You can manually update the printer driver by searching the correct driver that is matched with your Windows OS on the manufacturer’s website and install it in your computer. This requires time and computer skills.

Automatically – If you don’t have time or patience to manually update drivers, you can do that automatically with Driver Easy. Its free version can detect and download the outdated drivers on your Windows with only a few clicks.

You can update your drivers automatically with either the FREE or the Pro version of Driver Easy. But with the Pro version it takes just 2 clicks (and you get full support and a 30-day money back guarantee):

1. Download and install Driver Easy.
2. Run Driver Easy and click the Scan Now button. Driver Easy will then scan your computer and detect any problem drivers.

3. Click the Update button next to a flagged device to automatically download the correct drivers (you can do this with the FREE version), and install it on your computer.
   Or click Update All to automatically download all the correct drivers that are missing or out of date on your Windows (this requires the Pro version – you’ll be prompted to upgrade when you click Update All).


These are the easy instructions to connect two external monitors for your laptop. Comment below if you have any questions, and we will see what more we can do to further help.
